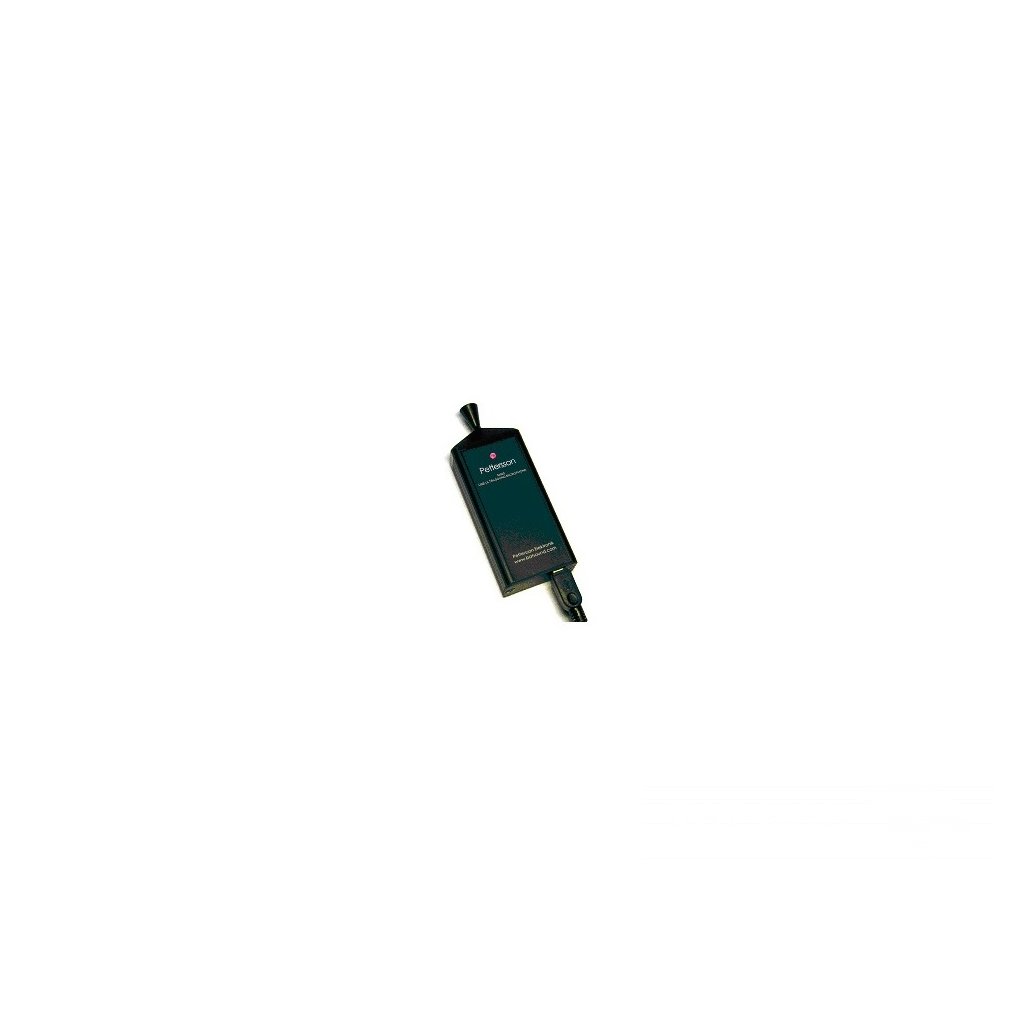

USB Ultrasound Microphone PETTERSSON M500-384 USB
Code: M500-384 USBRelated products
Product detailed description
USB Ultrasound Microphone PETTERSSON M500-384 USB
The M500-384 USB Ultrasound Microphone enables you to make high-quality, full spectrum recordings of bat calls or other ultrasonic signals with a wide variety of computers/laptops/tablets/smartphones, using the sound recording software of your choice. The M500-384 uses standard sound device drivers and does not require installation of any custom drivers.
Like the M500, the M500-384 comes in a slim and durable aluminium enclosure and utilizes the same advanced electret microphone technology as the well-known D500X detector.
The M500-384 can be used both in directional and omni-directional modes. The M500-384 is the ideal choice if you intend to use your smartphone for ultrasound recording. Also consider this model if you need to be independent of a specific OS or software. The software you choose to use must support recording at 384 kHz. Works with Android, Linux (Ubuntu), OS X, iOS or Windows. Please verify the hardware/software compatibility and that 384 kHz recording is supported. Certain smartphones/tablets – particularly low-end devices – have been found not to support USB audio at 384 kHz.
The M500-384 is of course compatible with our own BatSound and BatSound Touch software (for Windows). Some other recommended software for various operating systems include Audacity (Windows, macOS, Linux), Ultrasonic Analyzer (iOS) and Bat Recorder (Android). For information about the specifications and availability of these, please refer to the respective software developer.
A 0.5 m USB (type-A to mini-B) cable is included. USB cables of type mini-B to micro-B/OTG and mini-B to USB-C, suitable for use with smartphones or tablets, can be purchased separately.
The picture shows the M500-384 with an Android smartphone, running the Bat Recorder app, available at Google Play. Please note that the smartphone and cable are only shown as reference. The smartphone is not included with the M500-384 and the supplied cable is a USB Mini-B/USB-A type.
Video with instrunctions for use:
Technical specifications:
| Weight | 60 g |
| Dimensions | 43 × 114 × 13 mm |
| Microphone | Advanced electret |
| Sampling frequency | 384 kHz |
| ADC resolution | 16 bits |
| Frequency range | 10 kHz – 160 kHz |
| Interface | USB 2.0, full speed, OTG/host |
| Anti-aliasing filter | 8th order, 160 kHz |
| Power | USB bus powered |
Softwares which can be used with M500-384:
Windows: BatSound Touch, SoundChaser, Audacity
Android: Bat Recorder, USB Bat Detector
iOS: Ultrasonic Analyzer
Linux: Audacity
OS X: Audacity
USB Ultrasound Microphone PETTERSSON M500-384 USB
Additional parameters
| Category: | Pettersson Bat Detectors |
|---|---|
| Warranty: | 2 years |
| Výrobca: | Pettersson Elektronik AB |
