Ultrasound Detector PETTERSSON D500x / Recorder Mk I
Code: D500XProduct detailed description

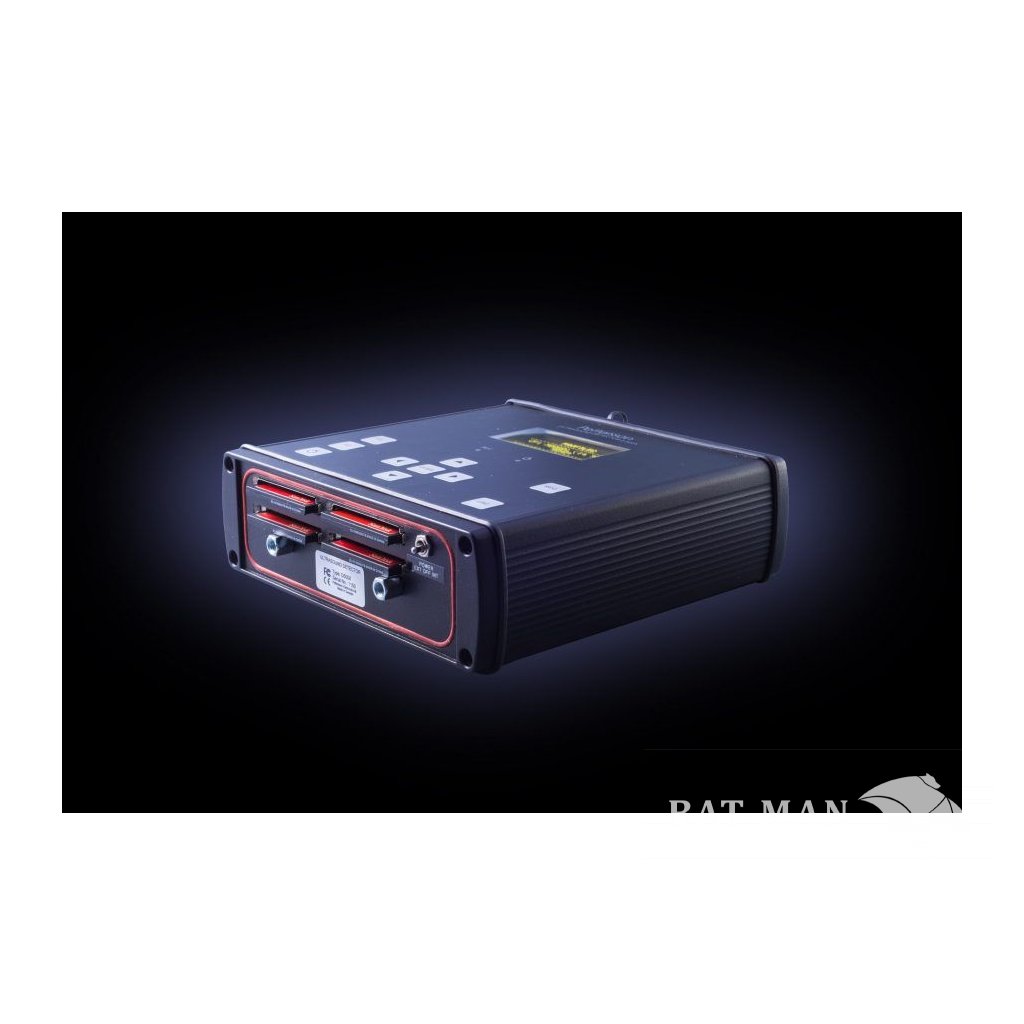

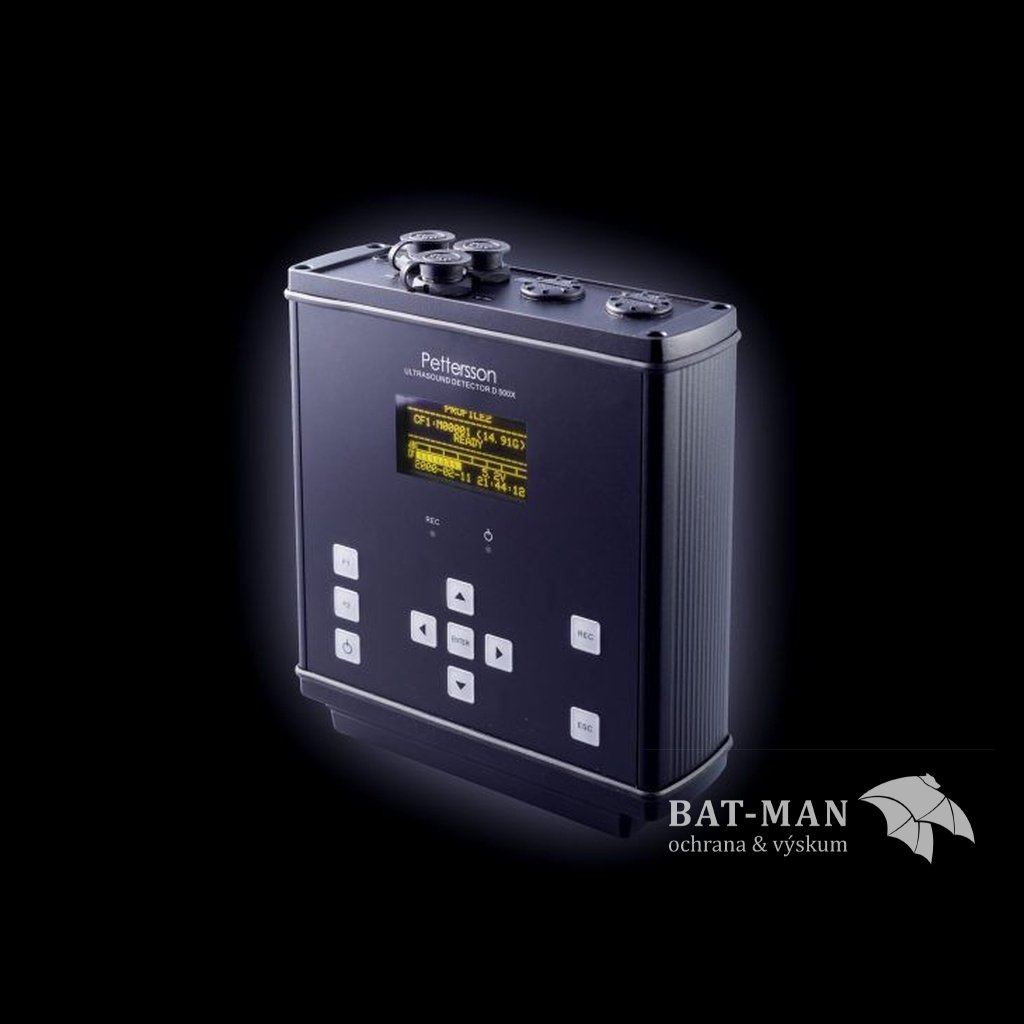

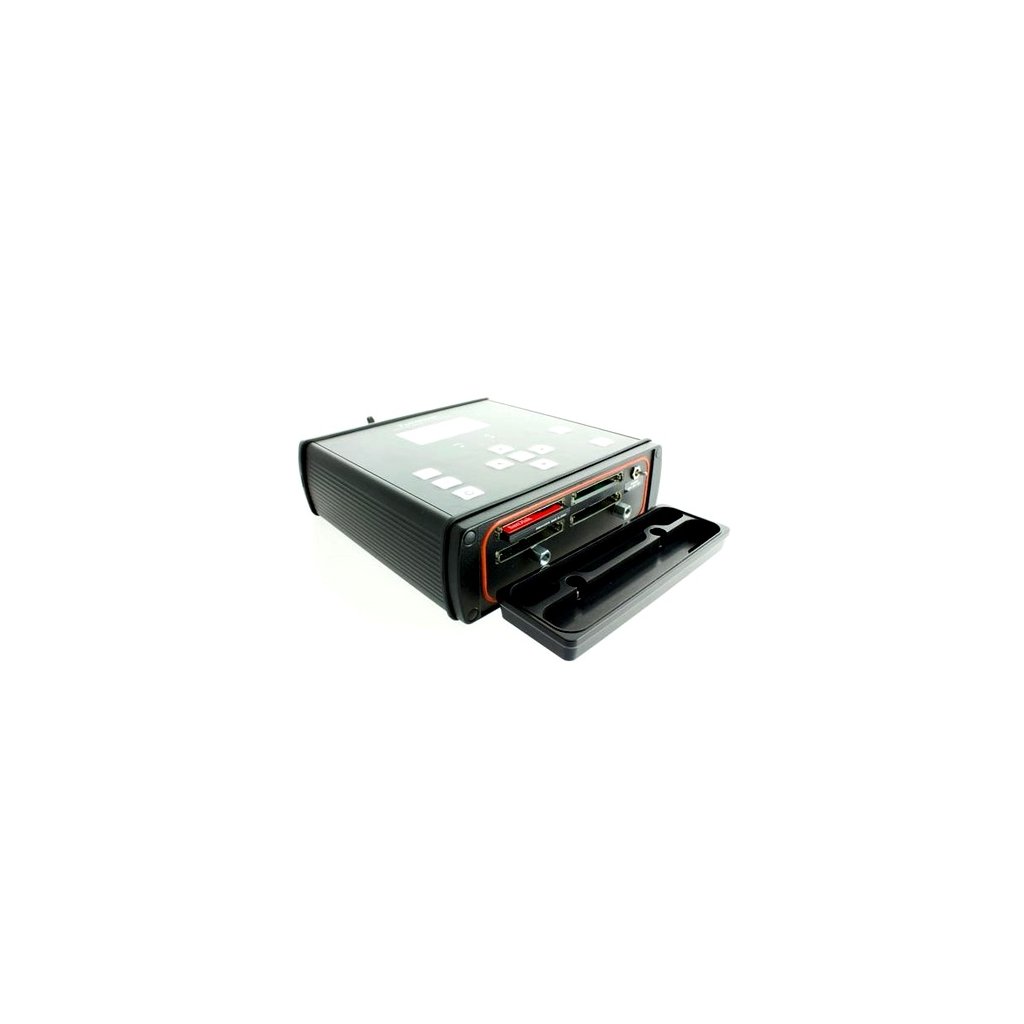

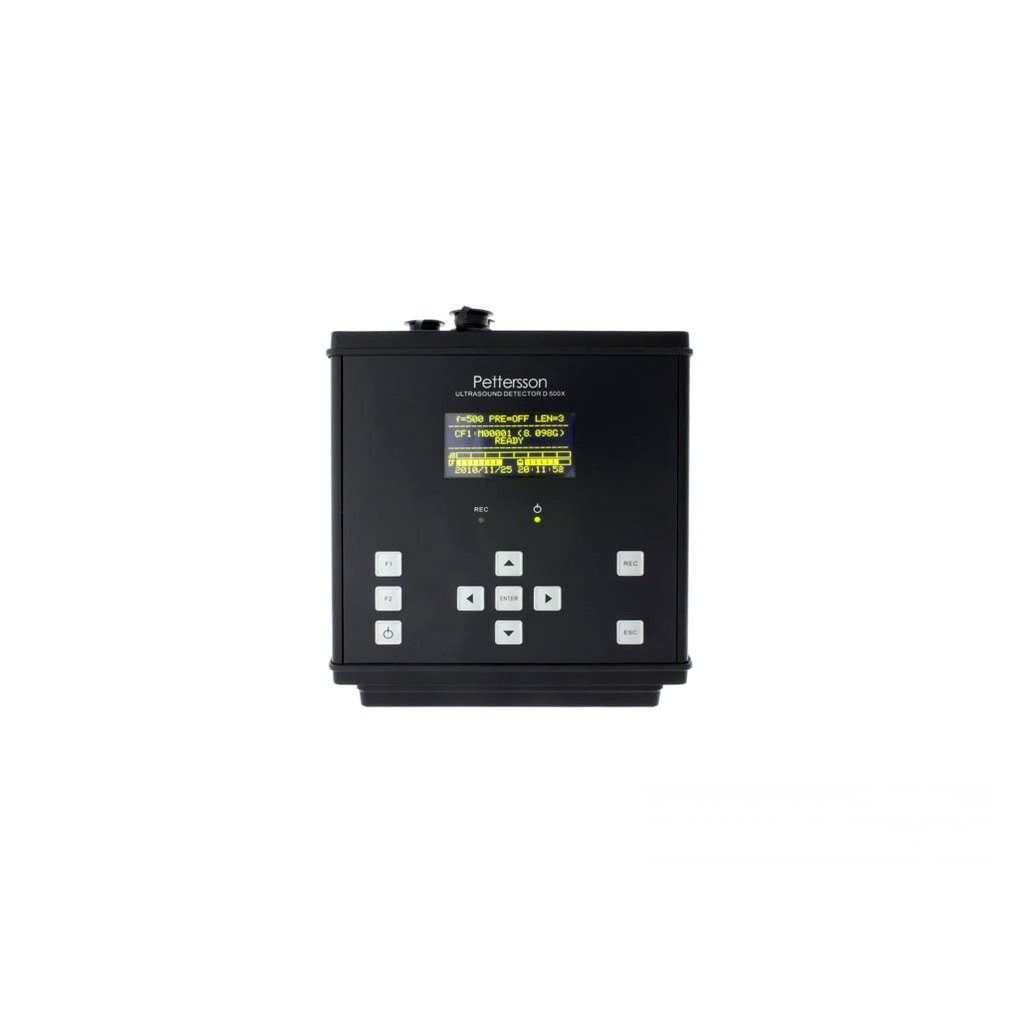

Ultrasound Detector PETTERSSON D500x / Recorder Mk I
The D500X is an ultrasound recording unit intended for long-term, unattended recording of bat calls. In contrast to time expansion bat detectors, the D500X records full-spectrum ultrasound in real time with virtually no gaps between recordings. The recorder is equipped with four slots for CF cards, which typically makes it possible to leave the unit in the field for more than a month. The triggering system allows the device to automatically start recording as a sound is detected.
Technical specifications:
| Weight | 1200 g |
| Dimensions | 165 × 170 × 53 mm |
| Type | Direct, high-speed recording |
| Microphone | Advanced electret, jack for external microphone |
| Frequency range | 15 kHz – 190 kHz (500 kHz sampling rate, high-pass filter enabled) |
| 5 kHz – 190 kHz (500 kHz sampling rate, high-pass filter disabled) | |
| Connections | External microphone, external trigger, external DC supply |
| Timer | Four on/off periods per day |
| Batteries | 4 x AA size, Alkaline or NiMH recommended |
| External DC supply | 5.5-8 V, typically ca. 200 mA (average, when recording), depends on CF card type and number of CF cards |
| Recording | ADC Resolution: 16 bits |
| Anti-aliasing filter: Yes, 8th order, 190 kHz cut-off frequency | |
| Sampling rates: 44.1, 300, 500 kHz (optimized for 500 kHz) | |
| Recording length: 0.3, 0.5, 1, 2, 3, 5, 10, 20 sec or manual recording | |
| Recording medium: CF card, 4 slots |
Additional parameters
| Category: | Pettersson Bat Detectors |
|---|---|
| Warranty: | 2 years |
| Výrobca: | Pettersson Elektronik AB |
