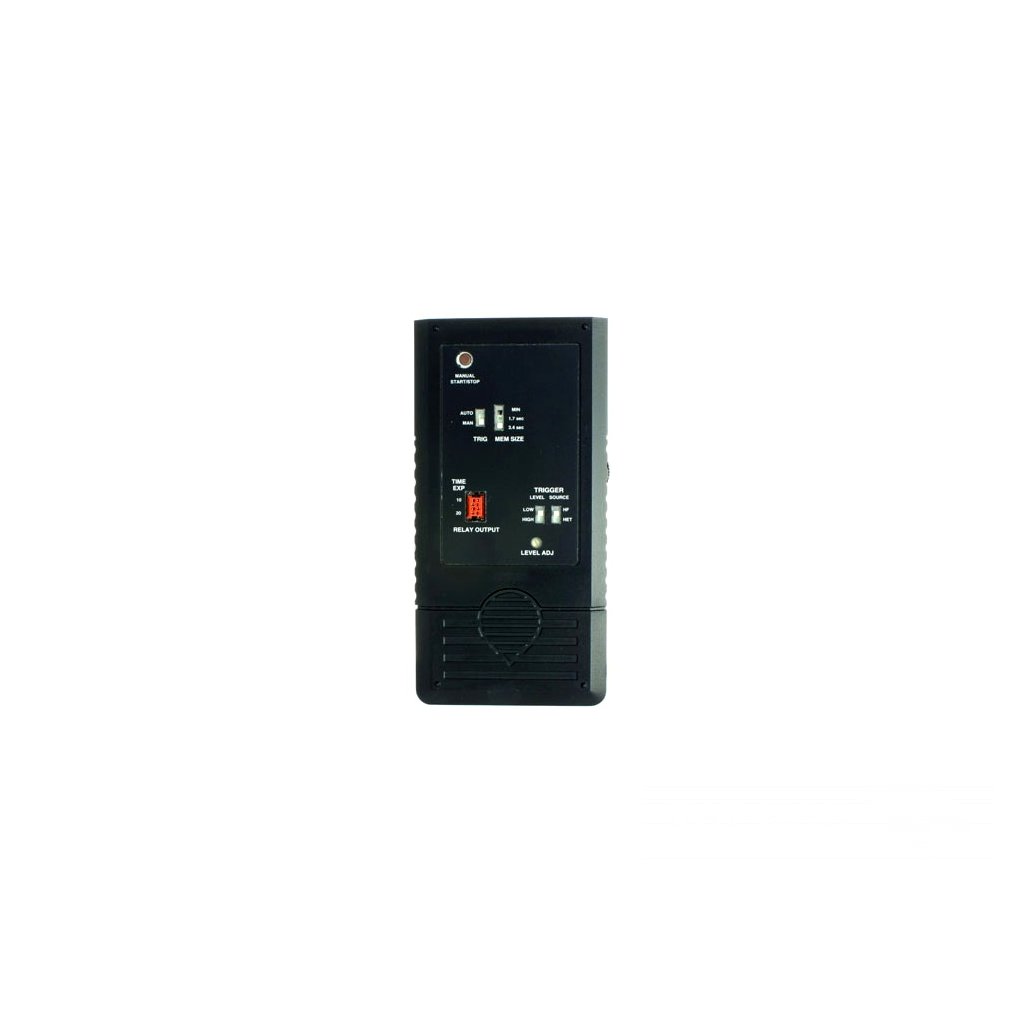

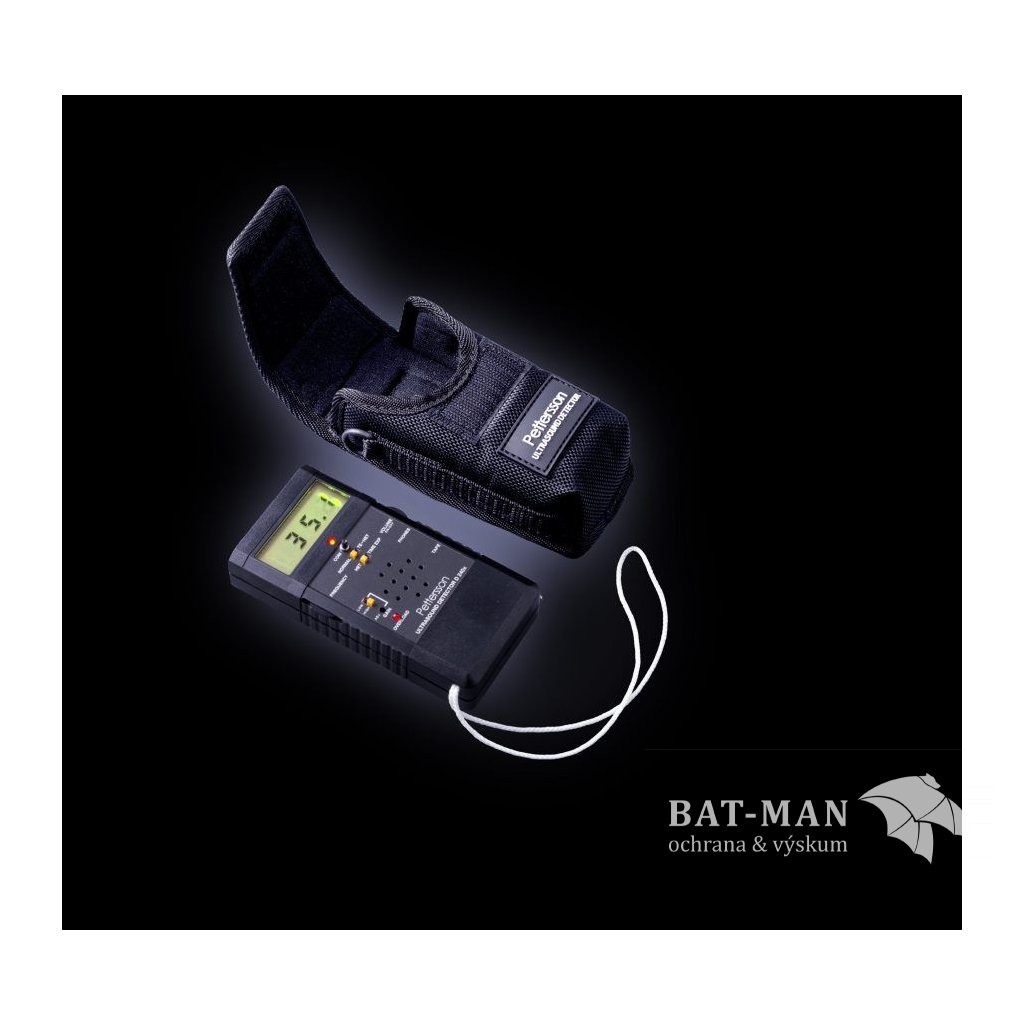

Ultrasound Detector PETTERSSON D240x

Code: D240X

Brand: Pettersson Elektronik AB

1 D240X Svart e1565993107471 900x901

1 D240X Svart e1565993107471 900x901

Ultrasound Detector PETTERSSON D240x

Ultrasound Detector PETTERSSON D240x

1 D240X 2 Svart scaled 900x835

€1 021,02 €830,10 excl. VAT

Na objednávku do týždňa

D 240x: Very popular heterodyne and time expansion detector with backlit, large digit, accurate digital display, showing the tuned frequency in the heterodyne mode. The frequency and volume controls are on the side of the case, making it easy to adjust. Using stereo headphones, the heterodyne signal is heard on the left channel and the time expansion signal on the right channel. When the built-in speaker is used, a switch is used to select the heterodyne or time expansion signal.

Detailed information

Product detailed description

Ultrasound Detector PETTERSSON D240x

A digital recorder can be connected to the D240X to record the time expanded calls for analysis on a PC. If the recorder has a “voice activated” recording mode, a fully automatic bat recording system is obtained, which can be left in the field for unattended recording of bat calls.

Technical specifications:

Weight	170 g
Dimensions	119 × 60 × 25 mm
Type	Heterodyne and time expansion (x10 or x20 – selectable via switch)
Microphone	Advanced electret
Frequency range	10-120 kHz (min.)
Display accuracy	± 0.15 kHz
Bandwidth	8 kHz (+/- 4 kHz), -6 dB
Battery	1 x IEC 6LF22 (9V)
Quiescent current	30 mA typ. (replay) including LCD backlight
Comment switch	Yes
Memory size	1M x 8
Sampling frequency	307 kHz
Resolution	8 bits
Storage time	3.4, 1.7 or 0.1 sec. (selectable via switch)
Trigger modes	Manual, level – broadband, level – narrowband
Pretrigger	50% of the selected storage time
Outputs	2 x 3.5 mm jacks for headphones and tape recorder
Miscellaneous	Overload indicator, adjustable input gain, replay of signal in memory through heterodyne system

Additional parameters

Category:	Pettersson Bat Detectors
Warranty:	2 years
Výrobca:	Pettersson Elektronik AB
