Ultrasound detector for bats ELEKON Batlogger C2
Code: 212.234Related products
Product detailed description
Next generation connected bat monitoring

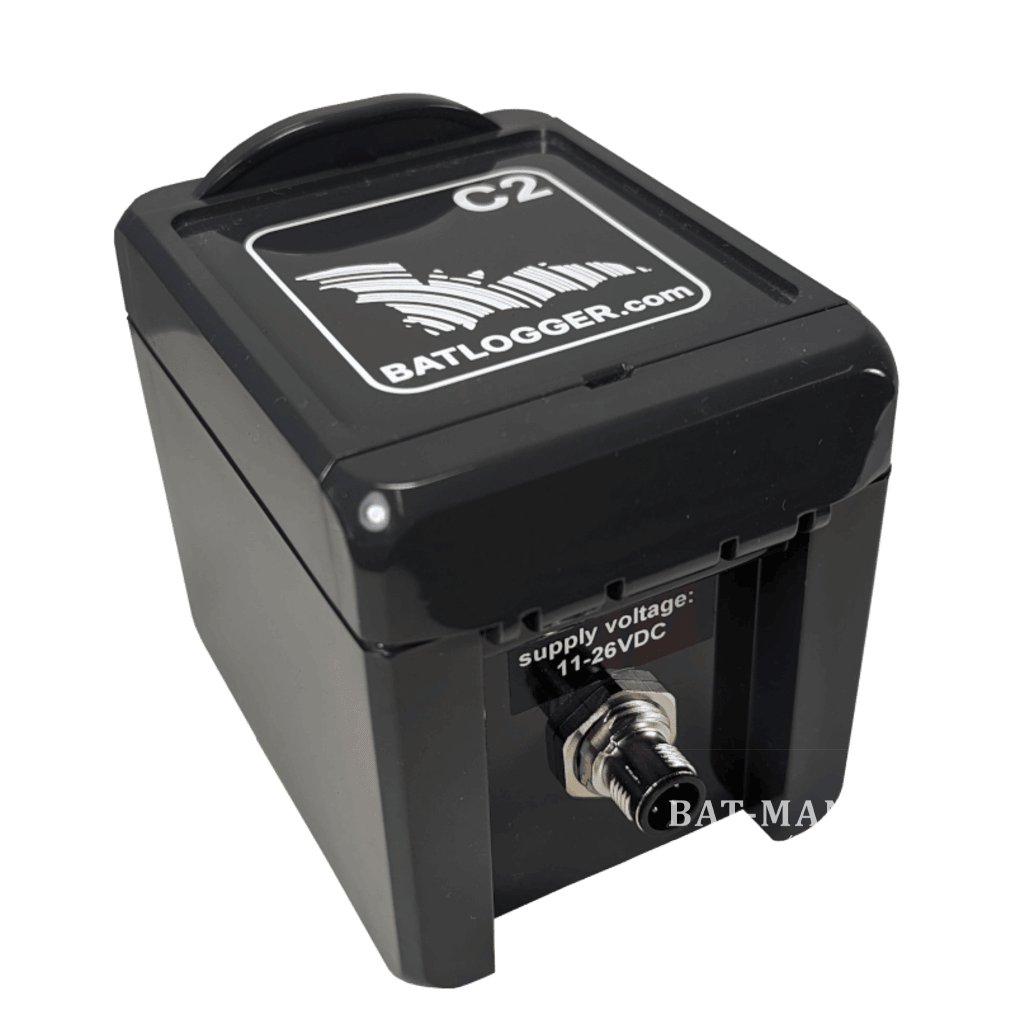

The BATLOGGER C2 is a bat detector that can record on 2 channels simultaneously. The integrated battery enables a recording time of up to 330 hours, which can be extended as desired by directly connecting a solar panel or an external power supply.
- Simple and easy to use with BATLOGGER Control App
- 2 microphones with cables for up to 170m
- Integrated microphone test
- Internal battery for 330h recording time
- Solar power/Externel power supply direct connectable
- Integrated connectivity with BATLOGGER Connect
New cable microphone ultra

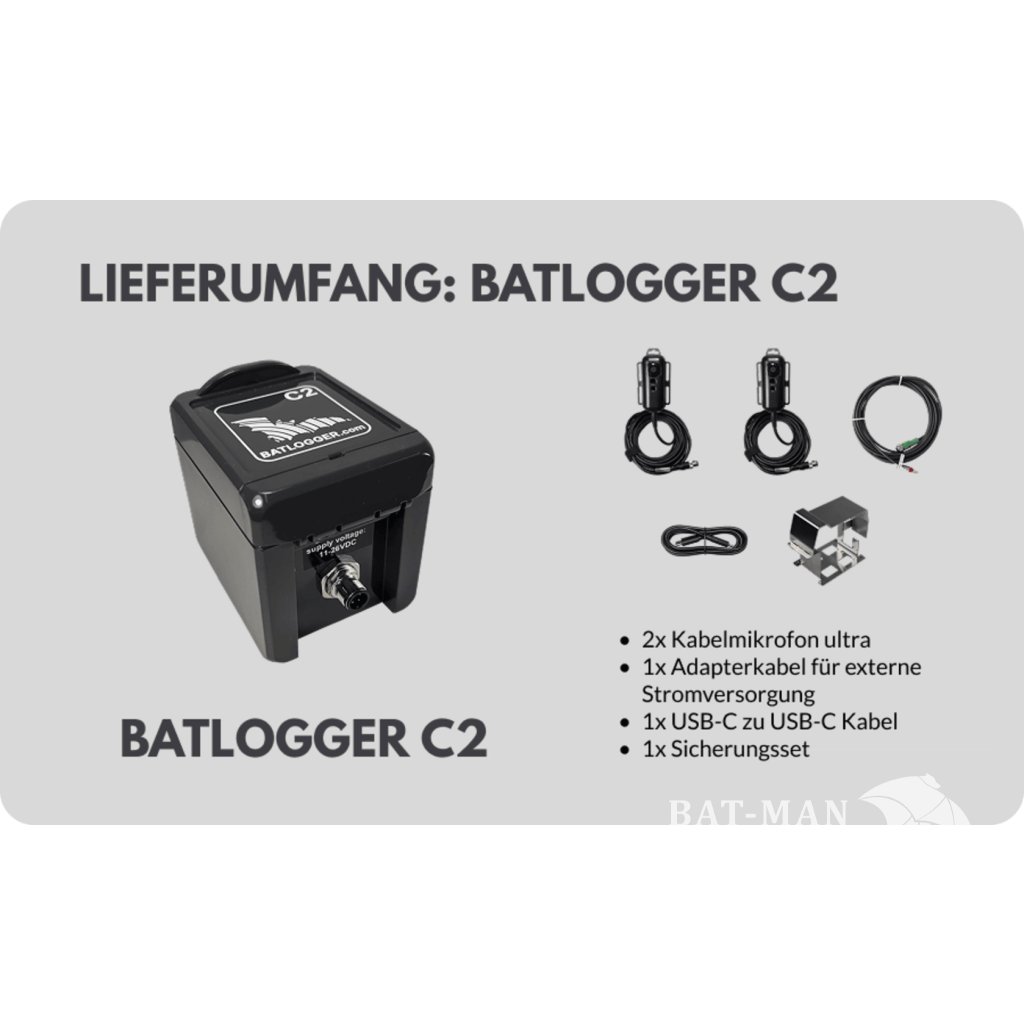

The BATLOGGER C2 comes with two of the new cable microphone ultra. It has an integrated microphone test, temperature and humidity sensor. This new microphone has a 5m long cable and can be extended with the microphone extension cables (20m, 50m and 100m).
Due to these new possibilites, the old FG black microphones and cables are not comptatible with the BATLOGGER C2.
Set up with the BATLOGGER Control App
No more navigating through confusing menus to find the setting you want. Just connect your BATLOGGER C2 with our BATLOGGER control app and set it up in seconds. Setting up one or more devices has never been easier.
USB-C charging and file transfer
The BATLOGGER C2 can be charged through USB C. You can also download the files through USB-C, or just remove the SD card.
Connect for your C2
Get status updates from the field with our IOT status subscription. The device will send its status directly in your BATLOGGER Connect account over LTE-M/NB-IOT. Check your SD-card level, battery level, microphone tests and alarms.
Technical specifications:
| Field of application | Passive long-term monitoring |
| Acoustic signal processing | Realtime 16bit-full spectrum |
| Sampling rate | 312.5/384/500 kHz |
| Type of microphone | SiSonic |
| Number of microphones | 2 |
| Sensitivity range | 10 - 192 kHz |
| Trigger function | yes, adjustable |
| Scheduler | yes, adjustable, with sunset/sunrise times |
| Automatic microphone test | yes |
| Storage | MicroSD card, 256 GB included |
| Display | no |
| Interface | BATLOGGER Control App |
| Connectivity | Batlogger Connect (IoT) |
| GPS | No, location set from App |
| Sensors | Temperature/Humidity |
| Size (WxLxD) | 113 x 101 x 80 mm |
| Weight | 677 g |
| Protection class | IP66 |
| Power supply | Internal battery pack, USB-C charging, external solar panel (optional), 12V battery(optional) |
| Operating time | 210h with 2 microphones, 330h with 1 microphone |
Additional parameters
| Category: | Bat detectors |
|---|---|
| Warranty: | 2 years |
| Výrobca: | Elekon AG |
